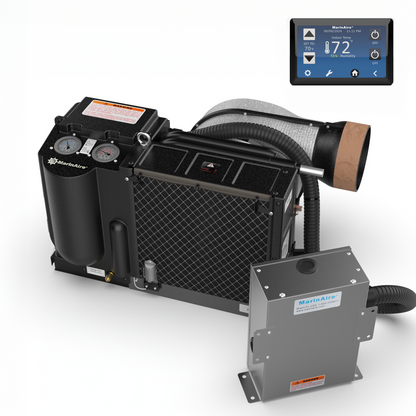

14,000 BTU Self-Contained Marine Air Conditioner & Heat Pump (110–120V)

There is no single “one-size-fits-all” seawater pump for marine air conditioners. The correct pump size depends on three factors: the air-conditioning unit, your specific installation, and the pump’s performance characteristics.

Each model lists a “Water Flow” value in the Technical Specifications tab. This rating refers to the required water flow at the unit outlet, not the pump size itself.

Because water flow is reduced by hose length, fittings, and vertical lift (head pressure), the pump selected must be capable of delivering the required flow at your actual installation head. Always reference the pump’s performance curve to confirm this.

General pump sizing guidelines

(Assumes average hose lengths and typical installations)

• 6,000 – 9,000 BTU units: 300 GPH pump per unit

• 11,000 – 16,000 BTU units: 500 GPH pump per unit

• 20,000 – 24,000 BTU units: 1,000 GPH pump per unit


Multiple units

If you are running more than one air conditioner:

• Two 16,000 BTU units require either:


  Two 500 GPH pumps, or


  One 1,000 GPH pump used with a proper relay/control panel




Important notes on pump

1. Do not oversize the pump. Excessive flow or pressure can reduce heat-exchange efficiency, increase component wear, and cause unnecessary noise or vibration. The goal is proper, consistent flow — not maximum flow.
2. Only use a pump designed for marine air-conditioning systems, such as a magnetic-drive seawater pump.

3. Do not use pool pumps, general-purpose circulation pumps, or Cal-style pumps. These pumps draw significantly higher current and can damage the unit’s control circuitry or burn out the relay.

Tip: If your installation involves unusually long hose runs, multiple elevation changes, or shared manifolds, consult the pump flow curve or a marine HVAC professional to ensure proper sizing.

We know space on any marine vessel is limited and valuable! Our units are designed to be among the most compact in their class, but every installation space is different. Always measure your available space before purchasing.

• For added installation flexibility, our units feature fully removable blowers, allowing the unit to be positioned in tight spaces and the blower reinstalled afterward.

Refer to the “Dimensions & Drawings” tab under each model for exact measurements, including overall size and service clearances. Confirm that there is adequate room not only for the unit itself, but also for hose connections, wiring, airflow, and future maintenance access.

Tip: If your space is tight or irregularly shaped, reviewing the dimensional drawings before ordering can help avoid installation issues.

That depends on your specific installation.

Each unit is pre-charged, and includes the core components required to operate the system:

• Thermostat

• Thermostat communication cable

• Four mounting brackets

• Spare temperature and humidity sensor


Installation-specific items — such as seawater pumps, plumbing components, ducting, venting, grilles, and fittings — vary by vessel and layout and are not included. These items must be selected separately based on your setup.

If you are replacing an existing marine air-conditioning unit, most installations can reuse the existing set up.
Many customers refer to this as a ‘plug-and-play’ replacement.

No. These units are designed exclusively for marine applications and are not supported for use outside of a marine environment.

Each marine air conditioner requires hundreds of gallons per hour of water flow from an open loop system. Water tanks, pools, tubs, etc. will not work.
They are also not UL-listed for use outside of a marine environment and are not approved for non-marine installations.

Generator size depends on your specific MarinAire model, voltage, and what other onboard loads you plan to run at the same time. We recommend consulting a qualified marine electrician for final generator selection and installation. For a quick starting point, you can use our Generator Size Calculator, which provides a general estimate based on your unit and rounds to common real-world generator sizes.

You can run MarinAire on DC (battery) power by using a pure sine wave inverter to convert your battery bank’s DC into AC power. Because inverter sizing, wiring, and battery performance vary by installation, we strongly recommend consulting a qualified marine electrician for accurate system design and verification. If you’d like a starting point, our Battery Power Calculator can provide a general estimate of inverter size and expected runtime based on your unit and battery setup, but results may vary in real-world conditions.

MarinAire is an American company, and our systems are invented and engineered in the United States.

Our air conditioners are built using hundreds of globally sourced components from top quality manufacturers, with parts produced in multiple countries (Japan, Germany, etc.) to meet performance and reliability standards. Final assembly is performed in China, followed by multi-stage testing and quality verification.

Before shipment, each unit undergoes final inspection and quality control in the United States to ensure it meets our performance, safety, and reliability standards.
